ALCHIMIST AD16H-960

• Output Power: 8 x 120W, suitable for powerful audio systems.
• Diverse Inputs: 12 inputs (8 High-Level, 2 AUX, 1 Optical, 1 Coaxial) for high flexibility.
• Multiple Outputs: 16 outputs (8 High-Level, 8 Line-Level) to meet various connectivity needs.
• Bluetooth 5.3: Advanced wireless connection, easily stream music from mobile devices.
• 24bit/48kHz DSP: High-quality digital-to-analog conversion.
• 31-Band EQ: Independent sound adjustment, allowing for precise customization.
• Low Voltage Protection: Automatically shuts down when voltage is low, protecting the device.

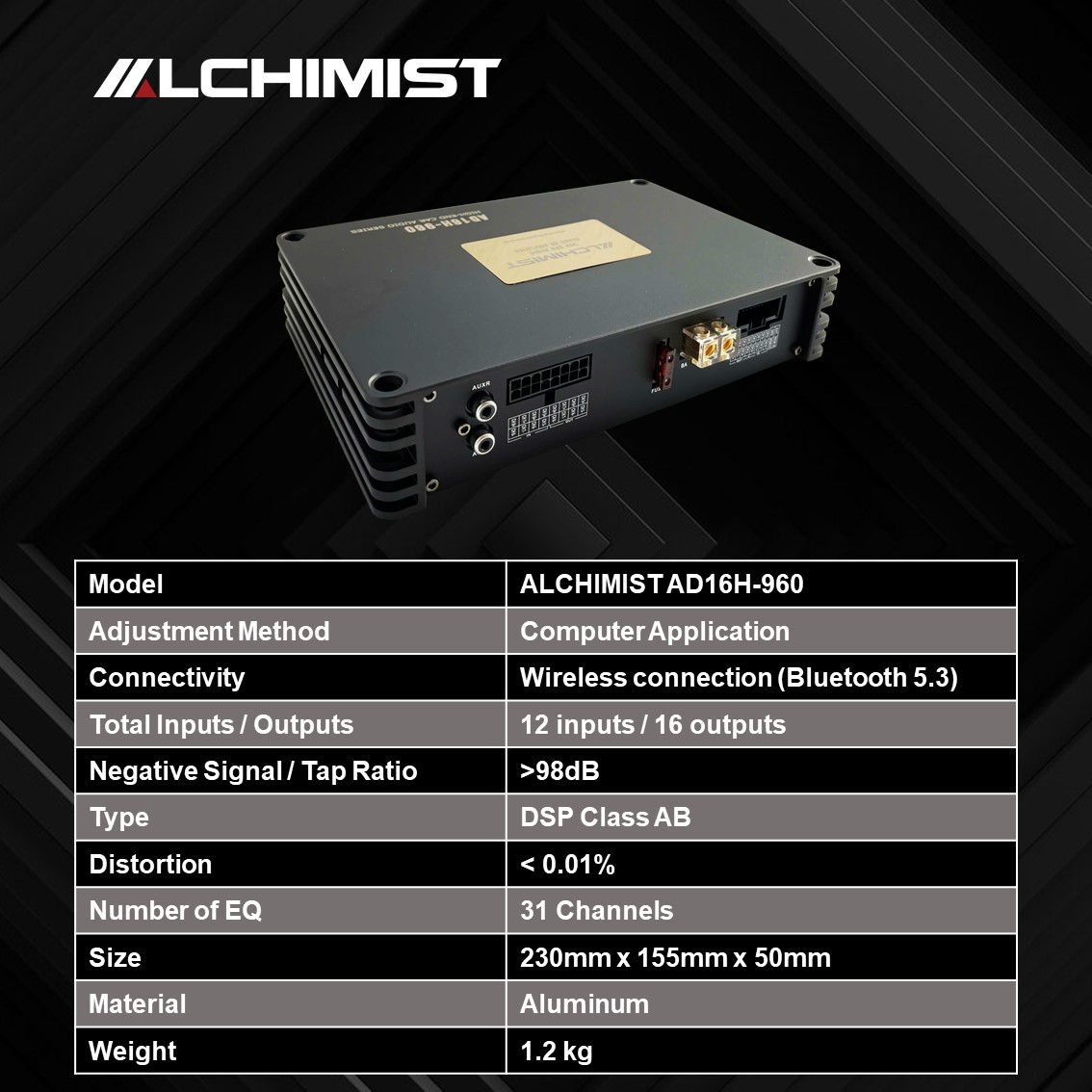

Technical Specifications

• Model: ALCHIMIST AD16H-960
• Amplifier Type: Class AB

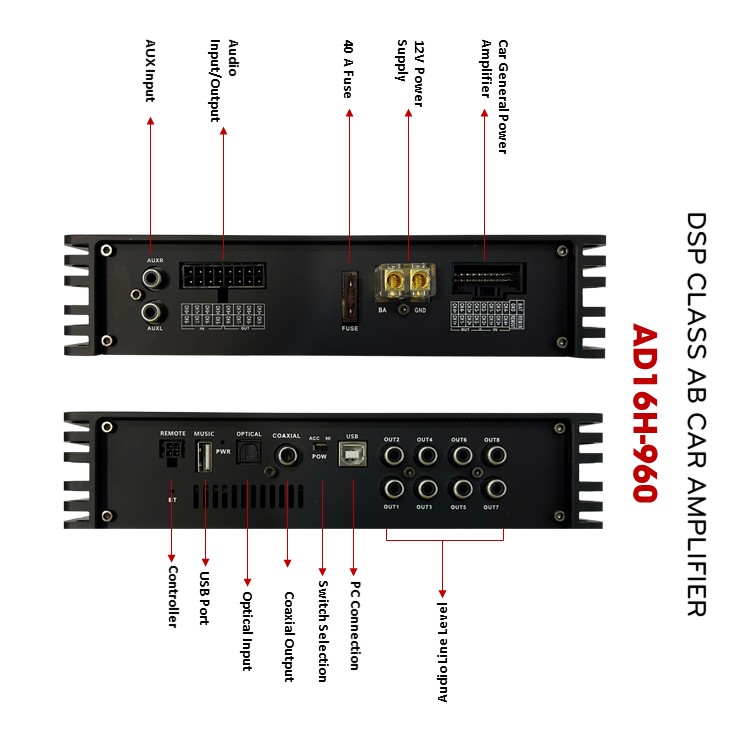

Inputs

• Total Number of Inputs: 12 inputs
  • High-Level Inputs: 8 inputs
  • AUX Inputs: 2 inputs
  • Optical Inputs: 1 input
  • Coaxial Inputs: 1 input

Outputs

• Total Number of Outputs: 16 outputs
  • High-Level Outputs: 8 outputs
  • Line-Level Outputs: 8 outputs

Other Technical Specifications

• Output Power: 8 x 120W
• Output Impedance: 4Ω / 2Ω
• Frequency Response: 20Hz - 20kHz
• Total Harmonic Distortion: 0.01%
• Signal-to-Noise Ratio: >102dB
• Digital to Analog Conversion: 24bit / 48kHz
• EQ: 31 independent adjustable bands
• Connection: Wireless connection (Bluetooth 5.3)
• USB: Supports USB music playback and player control
• SPDIF Input: Supported
• Operating Voltage: 10-16V
• Adjustment Method: Computer software / fine-tuning program
• Low Voltage Protection: Protects against battery shutdown when voltage is low
