Description
10-Channel DSP with Bluetooth 5.3 Lossless and Optical Ports
This product features a premium design, including:
- 10 output channels and 2 auxiliary input channels
- High-end components and an integrated high-power amplifier
- Sleek, aluminum alloy housing with an exclusive blue LED design accent
The software interface has been made more user-friendly, with a split-screen mode for quick and convenient sound adjustments.
Details

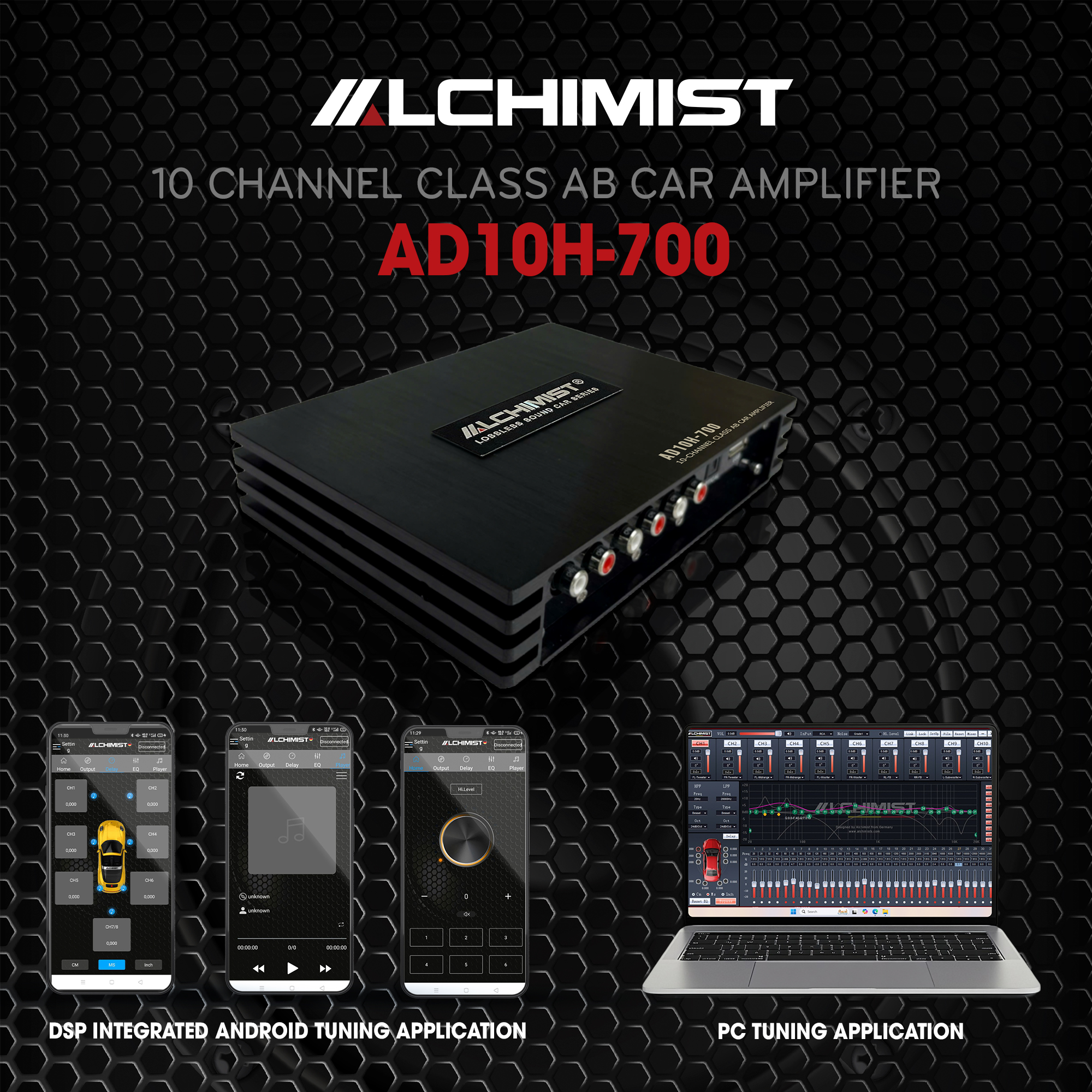

High-End 10-Channel Class AB DSP with Bluetooth 5.3 Lossless and Optical Inputs
This advanced digital signal processor (DSP) is engineered for exceptional audio performance in your vehicle. Featuring a comprehensive set of features and high-quality components, this DSP will transform your in-car listening experience.
Key Features:
- 10 total channels, including 4 high-level outputs , 6 line-level outputs and 2 auxiliary inputs
- High-end Class AB amplifier design for stable, powerful performance
- Sleek, durable aluminum alloy housing with exclusive blue LED accents
- Seamless Bluetooth 5.3 integration with support for lossless audio codecs
- Optical signal input for pristine digital audio integration
- User-friendly software interface with split-screen sound adjustment mode
Technical Specifications:
| Impedance | 4Ω |
|---|---|
| Output Power | 4x85W, 6 Line Level |
| Operating Voltage | 10V~15V |
| Frequency Response | 20Hz~20KHz |
| Signal-to-Noise Ratio | >92dB |
| Total Harmonic Distortion | <0.01% |
| EQ Bands | 31-band |
| Input/Output | 4 inputs, 10 outputs (4 high-level + 6 Line-level + 2 Aux) |
| Startup Mode | ACC / Professional |
| Amplifier Type | DSP Class AB |
| Adjustment | Adjustable via brand app |
| Bluetooth | Bluetooth 5.0 with APTX Lossless, up to 15m range |
Physical Specifications:
| Dimensions | 170mm x 125mm x 30mm |
|---|---|
| Weight | 0.8kg (excluding packaging) |
| Housing Material | Black brushed aluminum with advanced heat dissipation |
