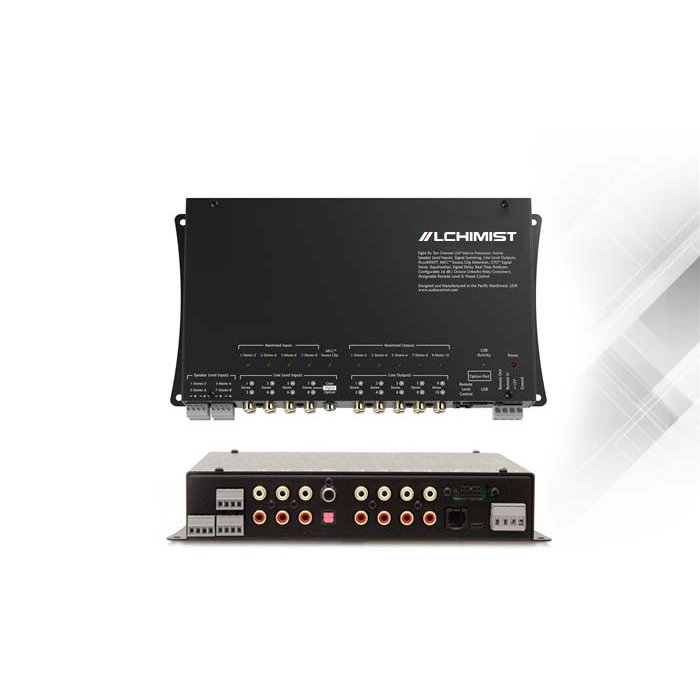

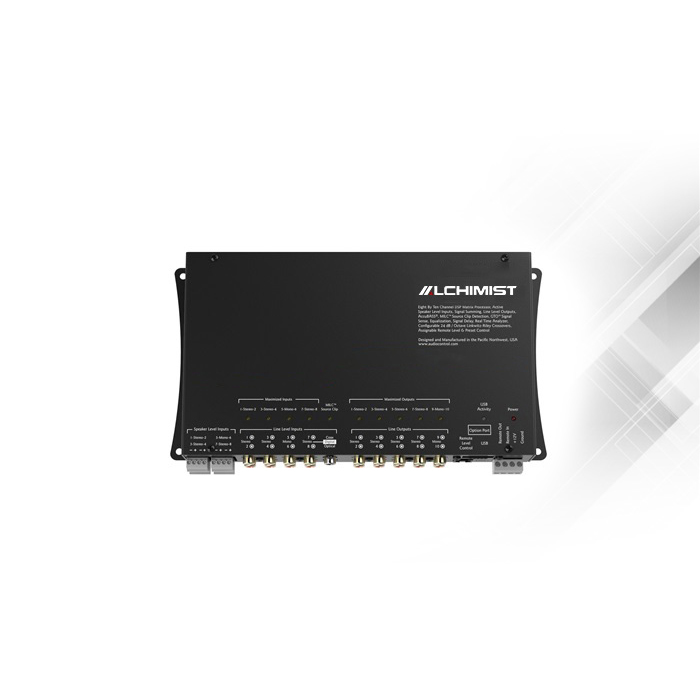

ALCHIMIST AD-812

The audio system includes a digital signal processor (DSP), enhancing the audio output by adjusting frequencies and optimizing the sound for the car's acoustics. This state-of-the-art DSP technology is the unsung hero behind the system's exceptional sound quality, working tirelessly in the background to sculpt the audio signal and create a truly immersive listening experience. The DSP's advanced algorithms analyze the unique acoustic properties of the vehicle's cabin, identifying and addressing any inherent challenges or sound distortions. By precisely adjusting the frequency response, the DSP ensures that the music is reproduced with remarkable clarity and balance, free from unwanted resonances or muddiness. This intelligent processing goes beyond simply boosting certain frequencies; it meticulously fine-tunes the entire audio spectrum, delivering a seamless and cohesive soundscape that envelops the listener. Whether you're enjoying the deep, rumbling bass lines of your favorite electronic track or the delicate nuances of a classical composition, the DSP's optimization ensures that every sonic detail is preserved and presented with stunning accuracy. This level of audio refinement is not just about enhancing the raw power of the system; it's about creating a truly immersive and emotionally engaging in-car audio experience. By adapting the sound to the unique acoustic environment of the vehicle, the DSP-powered audio system transports you to the heart of the music, allowing you to feel every note, every rhythm, and every subtle inflection as the artist intended. Prepare to be amazed by the transformative power of the digital signal processor, as it elevates your daily drives and road trips into sonic odysseys that captivate your senses and leave a lasting impression.

• Specifications
  • Inputs
    • Preamp Input Channels: 6
    • Digital Inputs: 1 x Toslink and Coax
    • Input Impedance Preamp / Speaker-level: 20 kΩ / 7 kΩ
  • Outputs
    • Preamp Outputs Channels: 8
    • Maximum Output Level: 10 Vrms
    • Output Impedance: 150 Ω
  • Performance
    • Total Harmonic Distortion: 0.01%
    • Frequency Response: 20 Hz to 24 kHz
    • Crossover Frequency: variable
    • Crossover Type: 12 and 24 dB/octave Linkwitz-Riley
  • Control
    • 12 VDC Remote In
    • 12 VDC Remote Out (always active when unit is on)
  • General
    • Power Supply: High Headroom PWM Switching
    • Current Draw: 1A
    • Recommended Fuse Rating: 3A
  • Weights & Dimensions
    • Dimensions: 9.4 inchesW x 5.7 inchesD x 1.6 inchesH
    • Weight: 2.4lbs (1.1kg)
  • In the Box
    • AD-812, Power and Speaker Connectors, Manual, Warranty
