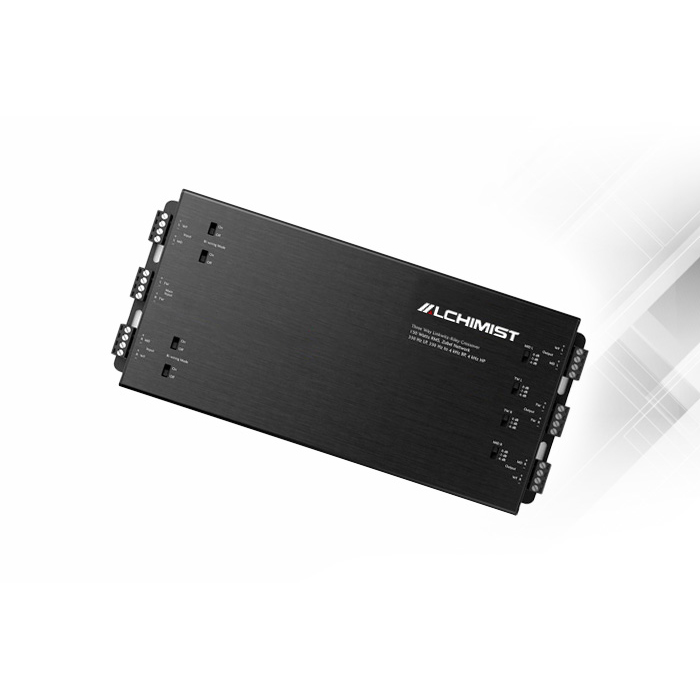

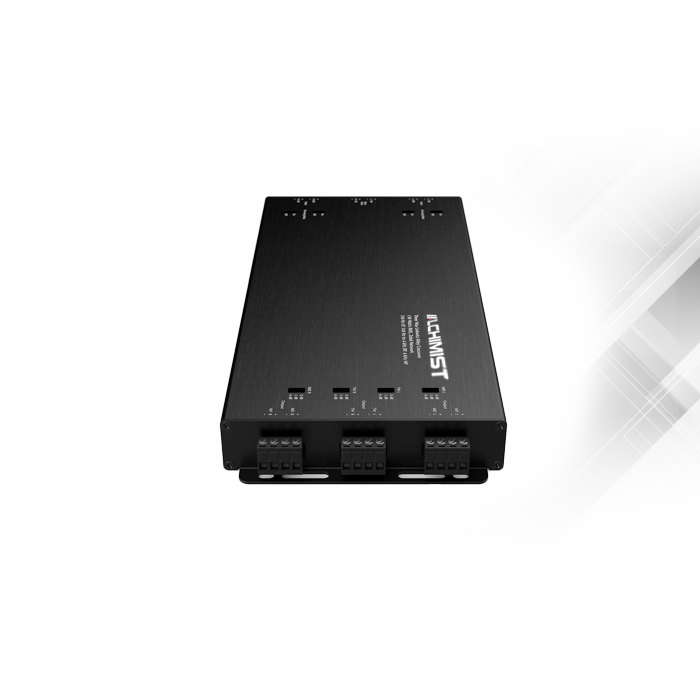

ALCHIMIST AD-806

When you require total control and optimization to achieve great sound quality, DSP ALCHIMIST AD-806 Processor is the solution. The powerful DSP ALCHIMIST AD-806 processor allows users to truly optimize the performance of their audio system, regardless of whether they are using a factory or aftermarket source, and to truly achieve the goal of “Making Good Sound Great”. These highly versatile Digital Signal processors are equipped with key features, such as active speaker level inputs, line-level and digital audio inputs, providing up to 10 channels of output. AudioControl’s DM Smart DSP app (available as a free download) contains the power of AudioControl processing through a flexible interface packed full of features in a simple layout. Configure signal summing, 30 bands of equalization, signal time-alignment, input delay and phase correction, plus AudioControl proprietary features like AccuBASS®, GTOTM Signal Sense, and MILCTM as well as integrated input and output RTA’s. The built-in Option Port on the DSP ALCHIMIST AD-806 is the future of car audio and will allow hi-res streaming directly into the DSP. It also opens up future proprietary connections for additional inputs, controllers, and interface solutions. Designed to be the ultimate in sound quality and enhanced audio performance, the DSP ALCHIMIST AD-806 is our latest AudioControl processor that sets a new standard for sound and what can be achieved in car audio systems.

SPECIFICATIONS

• INPUTS
• Preamp Input Channels: 10
• Digital Inputs: 1 x Toslink and Coax
• Input Impedance Preamp / Speaker-level: 20 kΩ / 7 kΩ
• OUTPUTS
• Preamp Outputs Channels: 10
• Maximum Output Level: 10 Vrms
• Output Impedance: 150 Ω
• PERFORMANCE
• Total Harmonic Distortion: 0.01%
• Frequency Response: 20 Hz to 24 kHz
• Crossover Frequency: variable
• Crossover Type: 12 and 24 dB/octave Linkwitz-Riley
• CONTROL
• 12 VDC Remote In
• 12 VDC Remote Out (always active when unit is on)
• GENERAL
• Power Supply: High Headroom PWM Switching
• Current Draw: 1A
• Recommended Fuse Rating: 3A
• WEIGHTS & DIMENSIONS
• Dimensions: 10.5”W x 5.7”D x 1.6”H
• Weight: 2.6lbs (1.2kg)
