Description
DSP Alchimist AD18H-1260 Audio Processor
Elevate your automotive audio system with the AD18H-1260 and enjoy the perfect blend of power, precision, and flexibility.
At the heart of the AD18H-1260 lies Alchimist's proprietary DSP core – model AD18H, developed in-house to meet the highest standards of modern sound engineering. This custom chip is optimized for ultra-fast audio signal processing, delivering crystal-clear detail, dynamic range control, and low-latency response across all 18 output channels.
Unlike conventional processors, the AD18H core incorporates adaptive EQ mapping, smart crossover algorithms, and real-time noise management, ensuring your system adapts seamlessly to different environments—from compact car cabins to full-size SUVs. This technology empowers audio professionals and enthusiasts to fine-tune every frequency band with surgical accuracy, unlocking the full potential of any speaker system.
Built not only for performance but also for intuitive integration, the AD18H DSP chip supports over-the-air firmware updates, customizable presets, and remote tuning via app or PC software—making it the most intelligent audio brain in its class.
Unleash your sound with Alchimist's cutting-edge innovation—only in the AD18H-1260.
Details

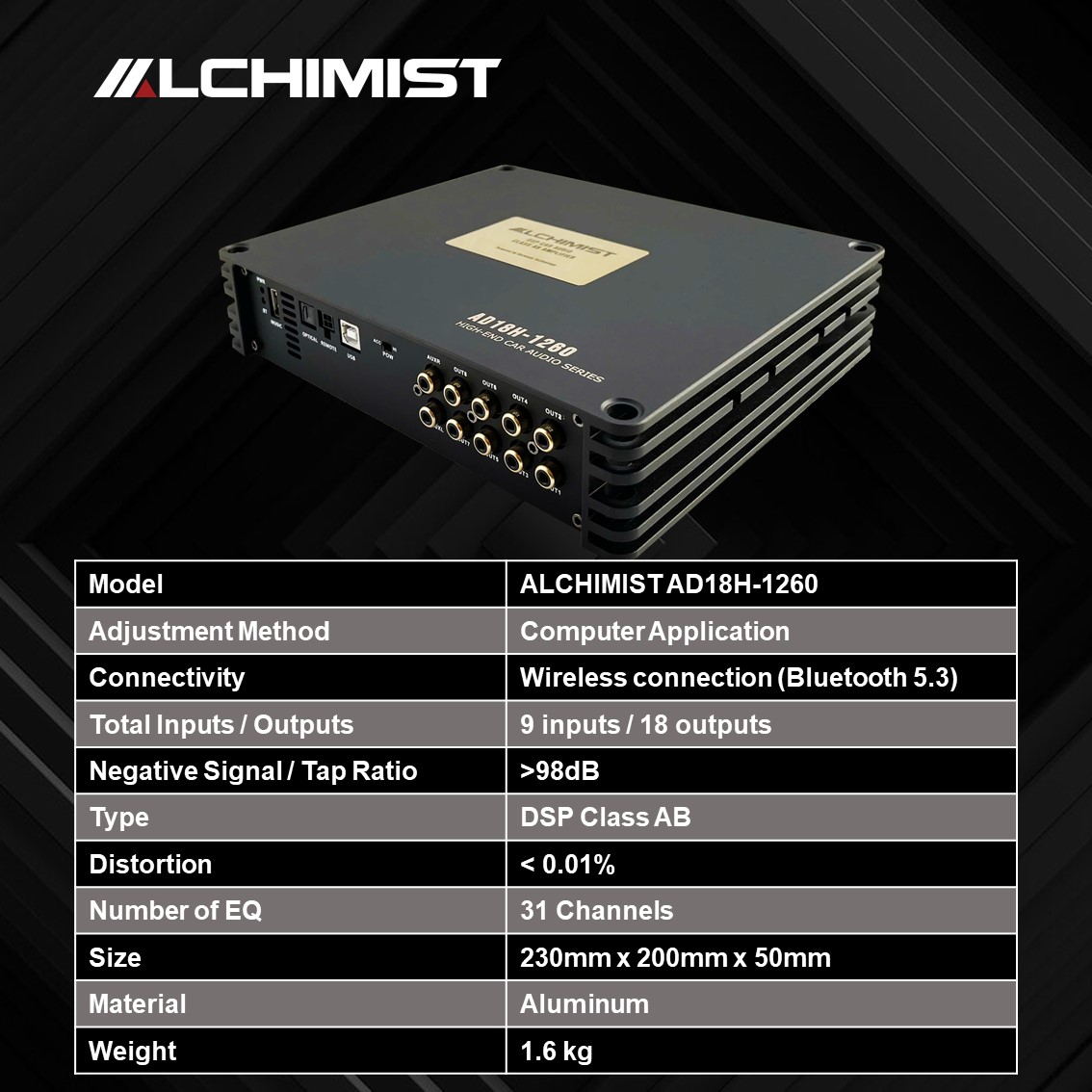

Technical Specifications
- Model: ALCHIMIST AD18H-1260
- Amplifier Type: Class AB

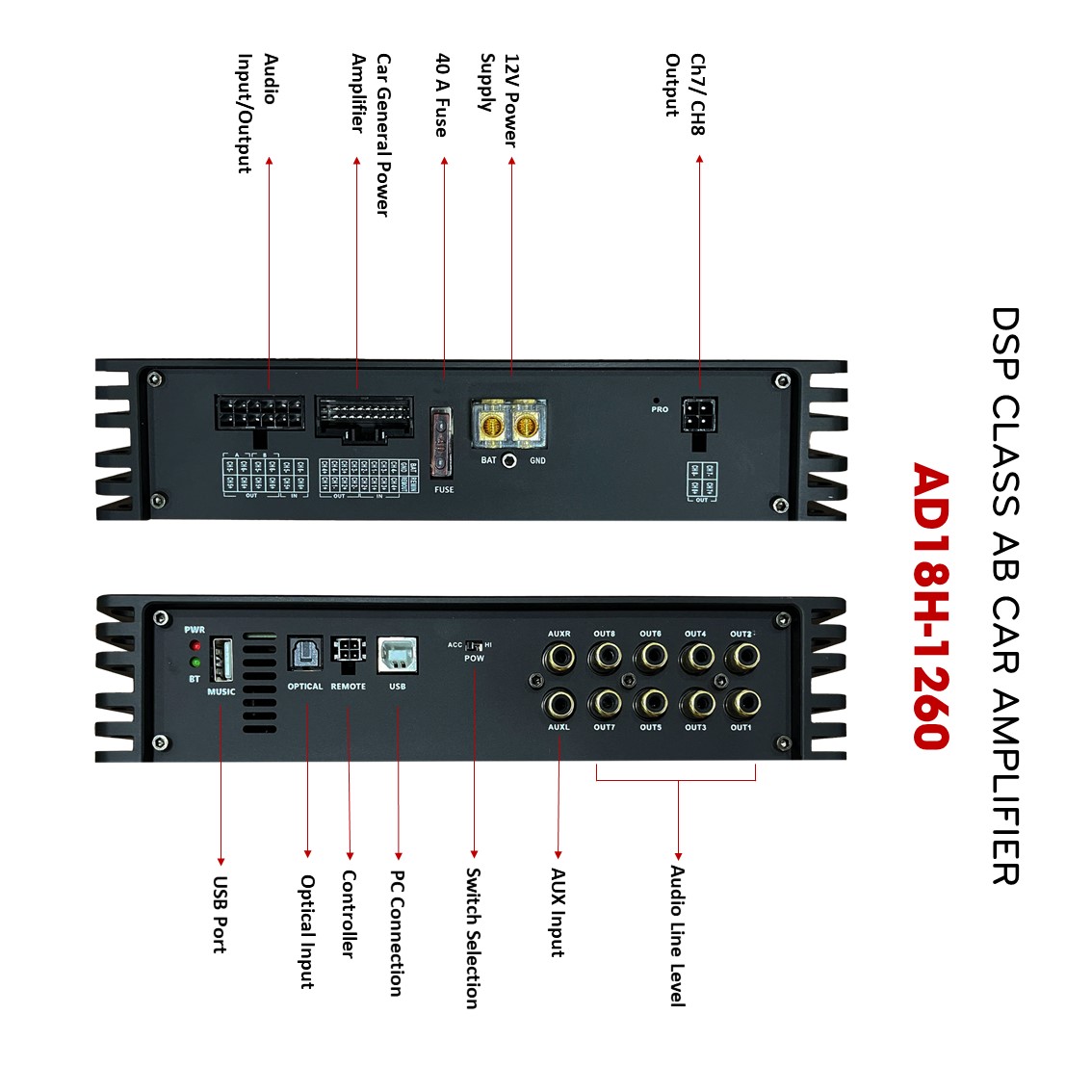

Inputs
- Total Number of Inputs: 9 inputs
- High-Level Inputs: 6 inputs
- AUX Inputs: 2 inputs
- Optical Inputs: 1 input
Outputs
- Total Number of Outputs: 18 outputs
- High-Level Outputs: 10 outputs
- Line-Level Outputs: 8 outputs
Other Technical Specifications
- Output Power: 8 x 120W + 2 x 150W
- Output Impedance: 4Ω / 2Ω
- Frequency Response: 20Hz - 20kHz
- Total Harmonic Distortion: 0.01%
- Signal-to-Noise Ratio: >102dB
- Digital to Analog Conversion: 24bit / 48kHz
- EQ: 31 independent adjustable bands
- Connection: Wireless connection (Bluetooth 5.3)
- USB: Supports USB music playback and player control
- SPDIF Input: Supported
- Operating Voltage: 10-16V
- Audio Capacitors: Samsung non-polar capacitors
- Adjustment Method: Computer software / fine-tuning program
- Low Voltage Protection: Protects against battery shutdown when voltage is low
