User Guide for Car Audio DSP Software

Introduction

Digital Signal Processing (DSP) software is essential for optimizing the audio experience in your vehicle. This guide provides an in-depth look at the functionalities of DSP software and detailed instructions for configuring your car audio system to achieve the best sound quality.

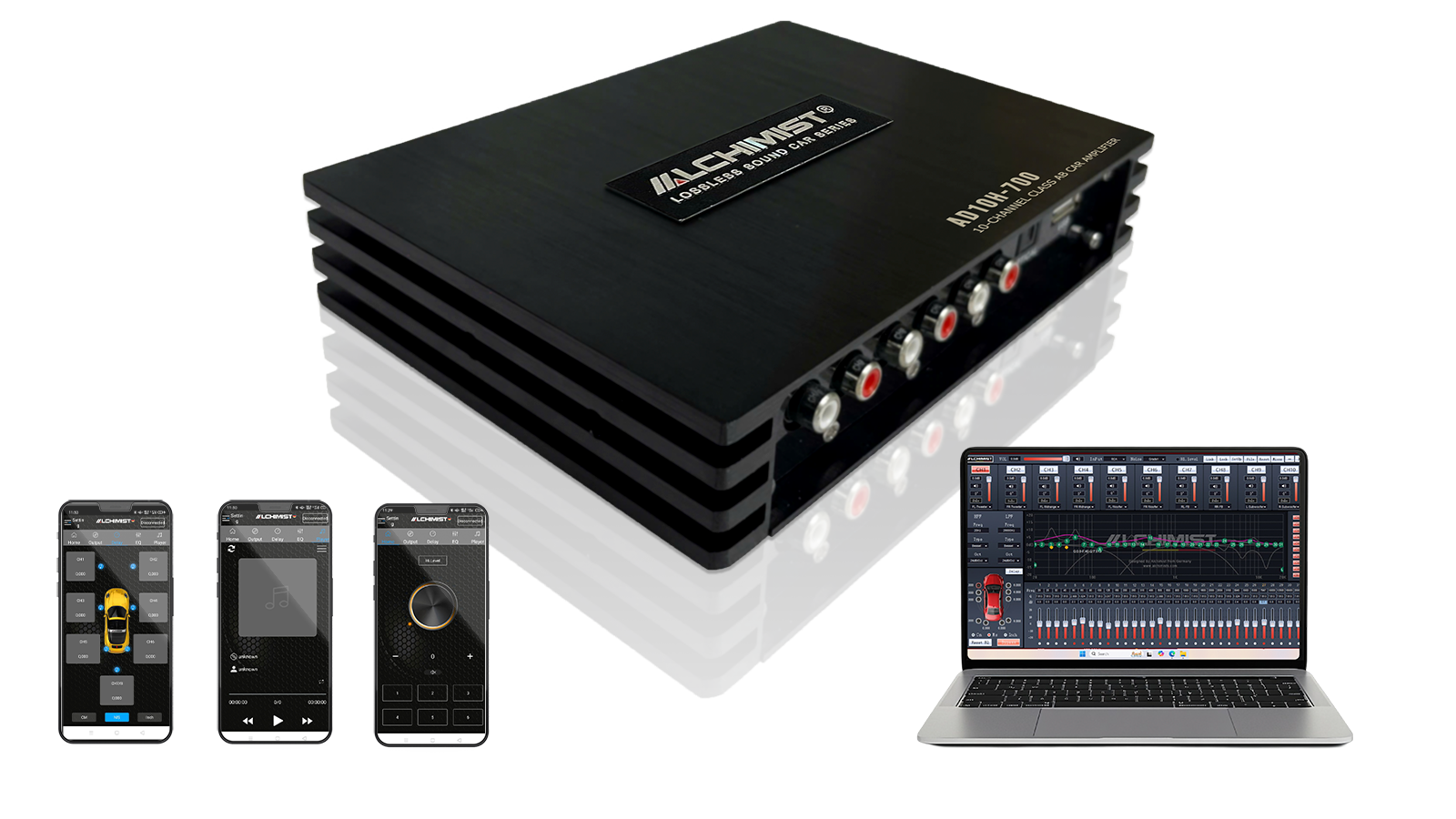

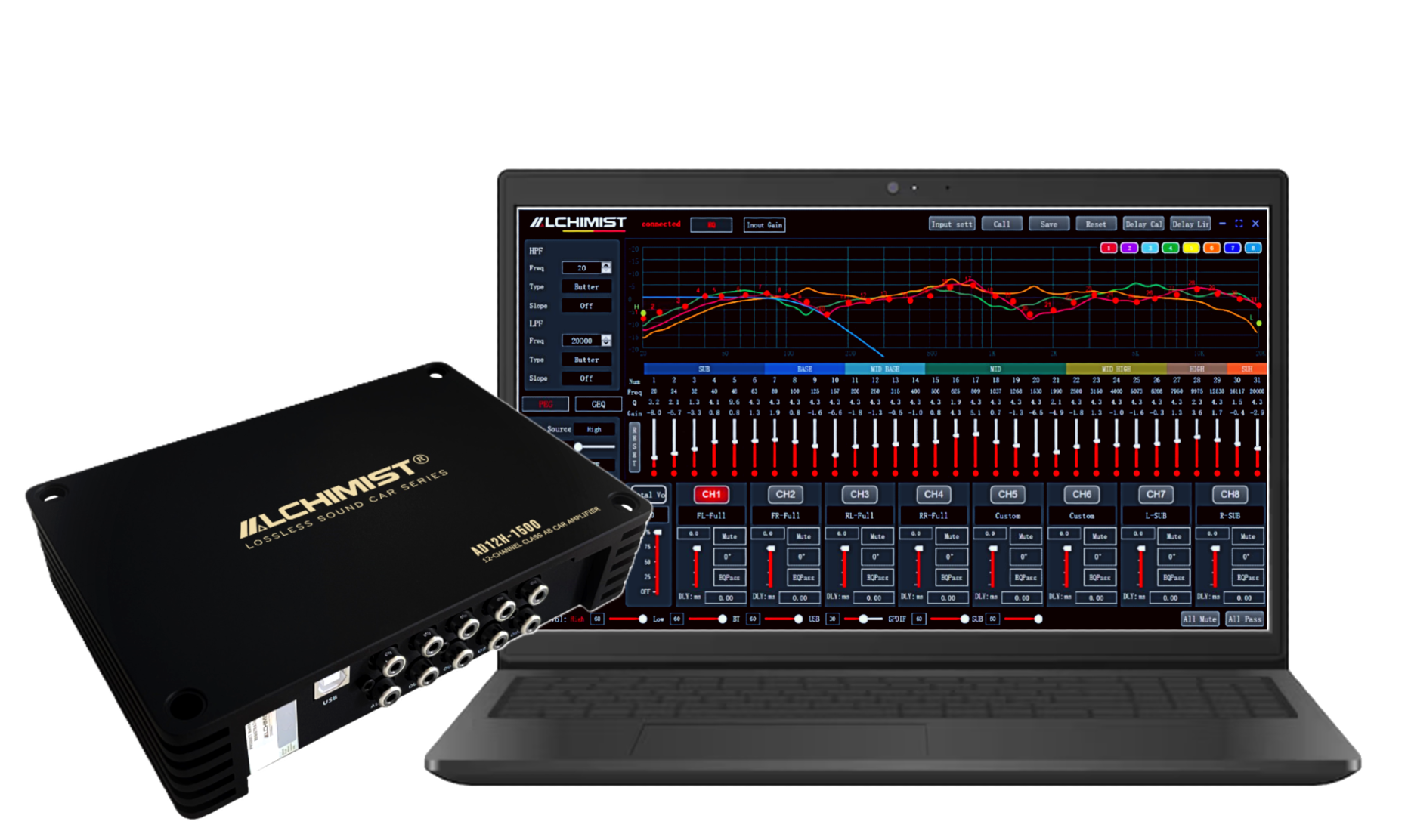

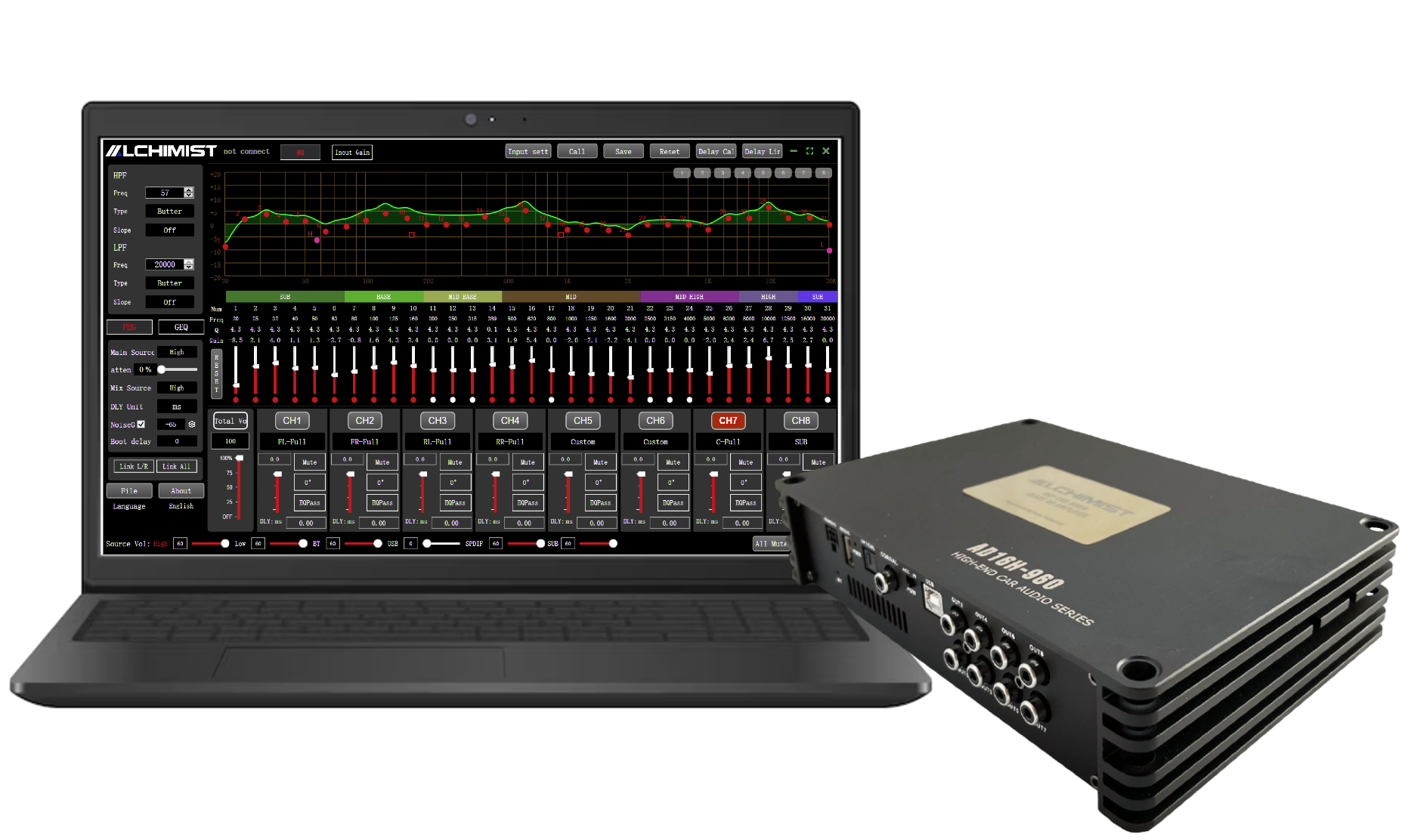

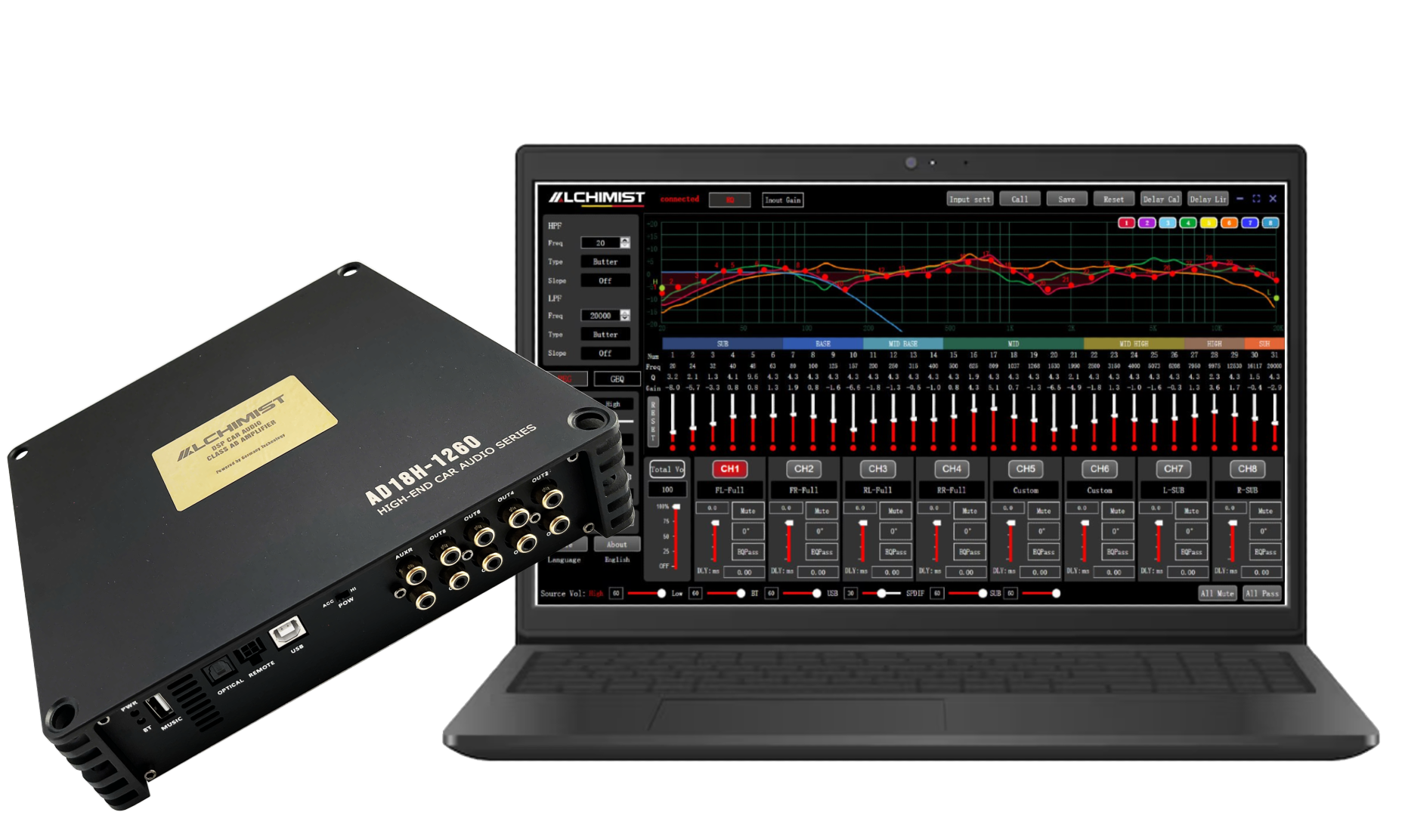

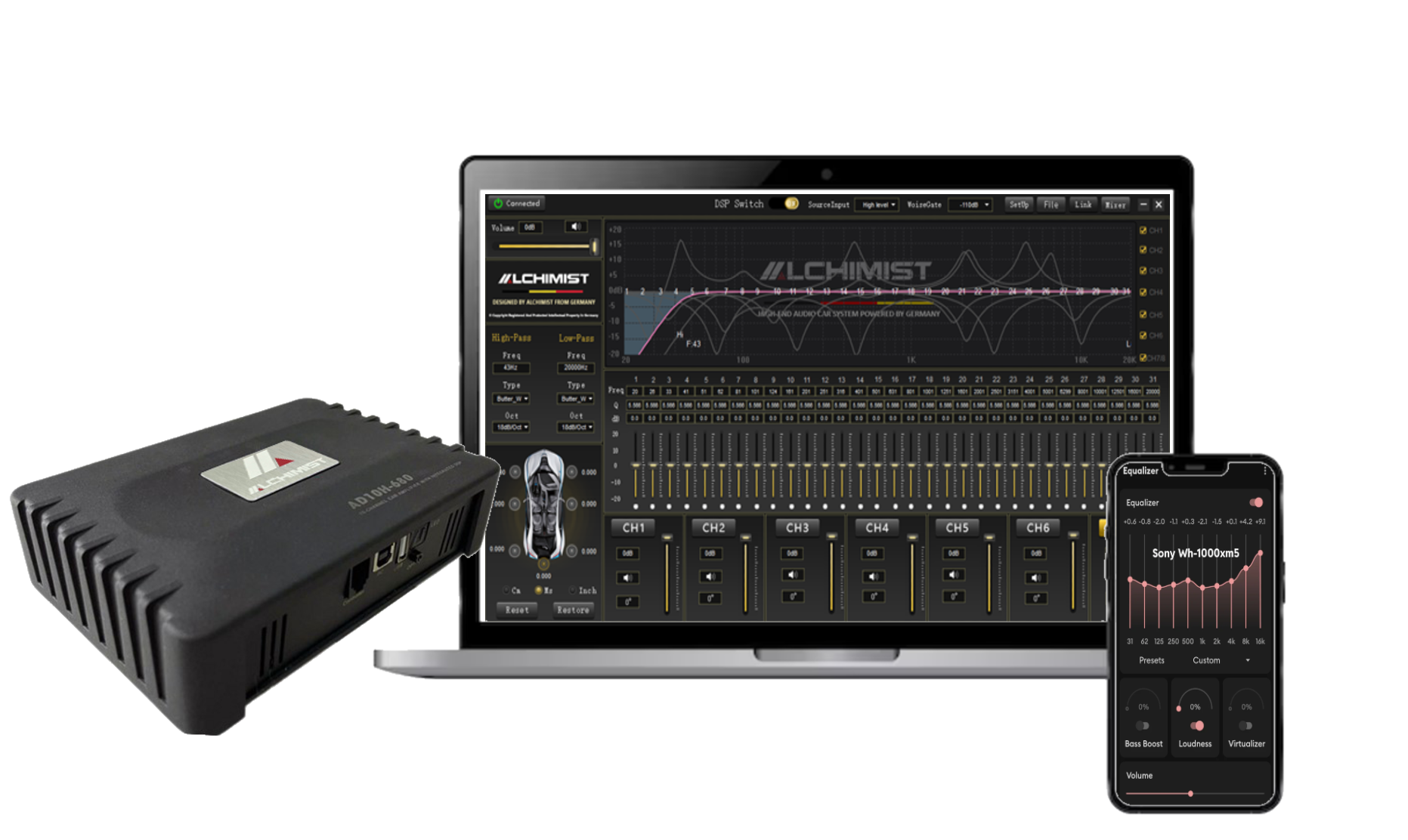

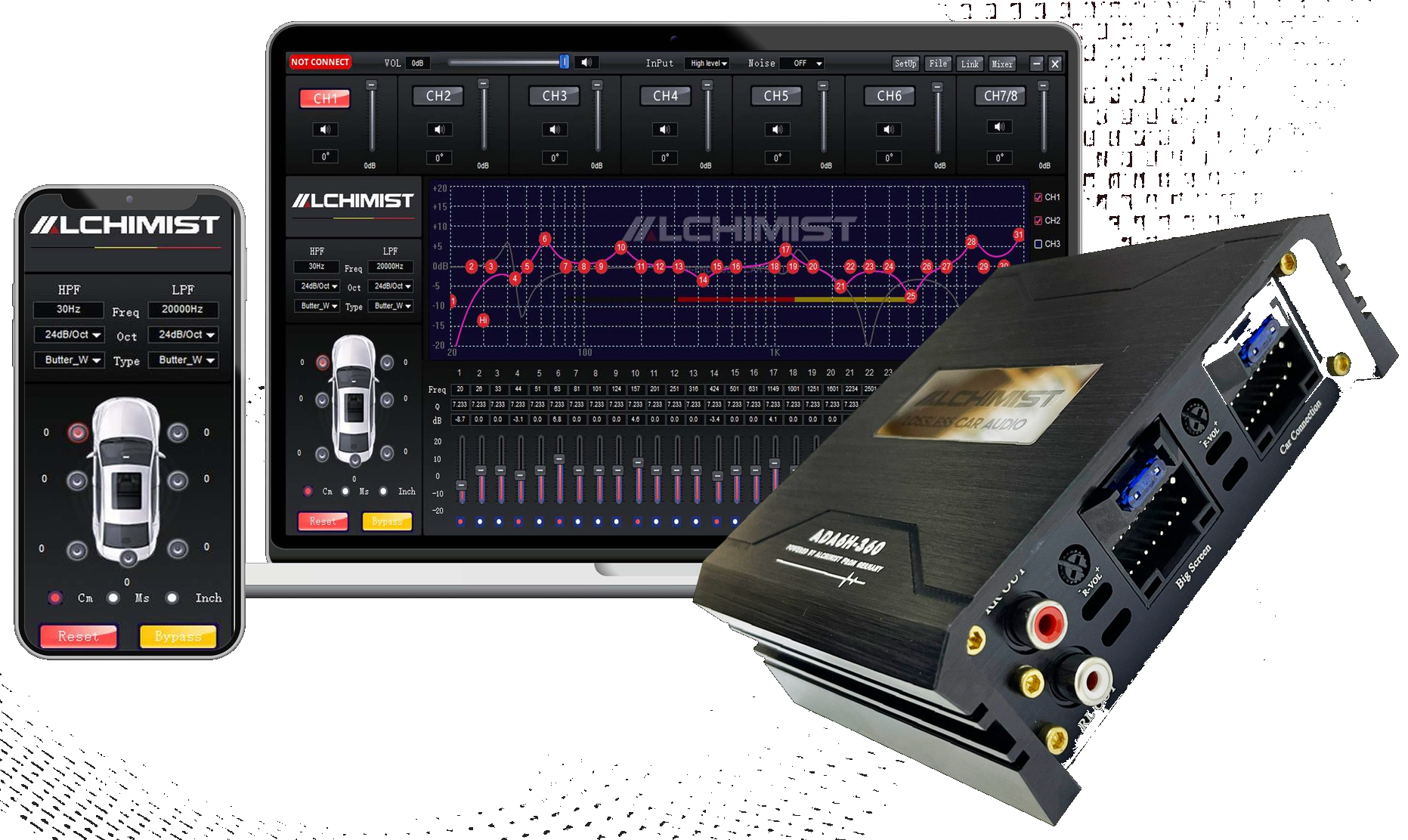

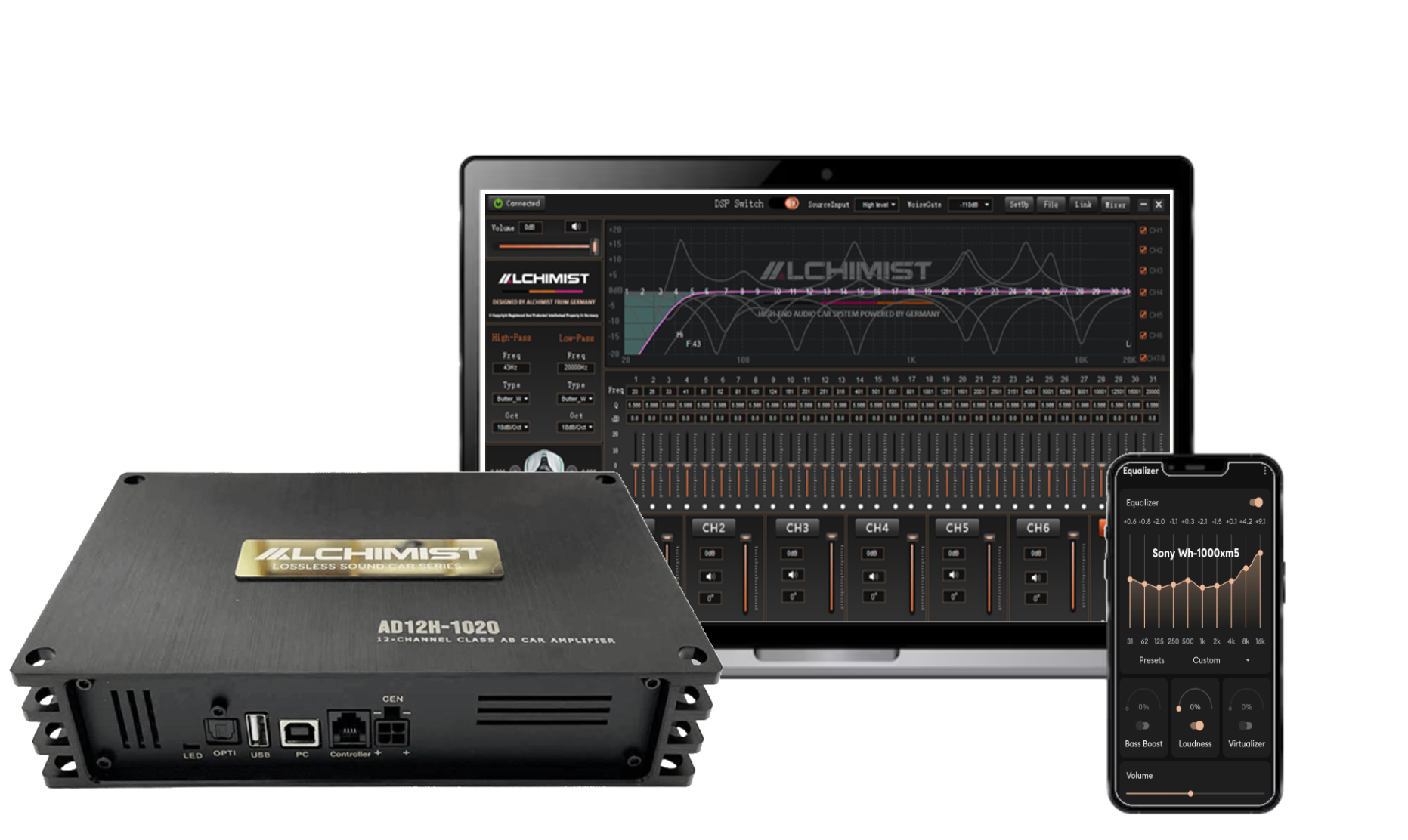

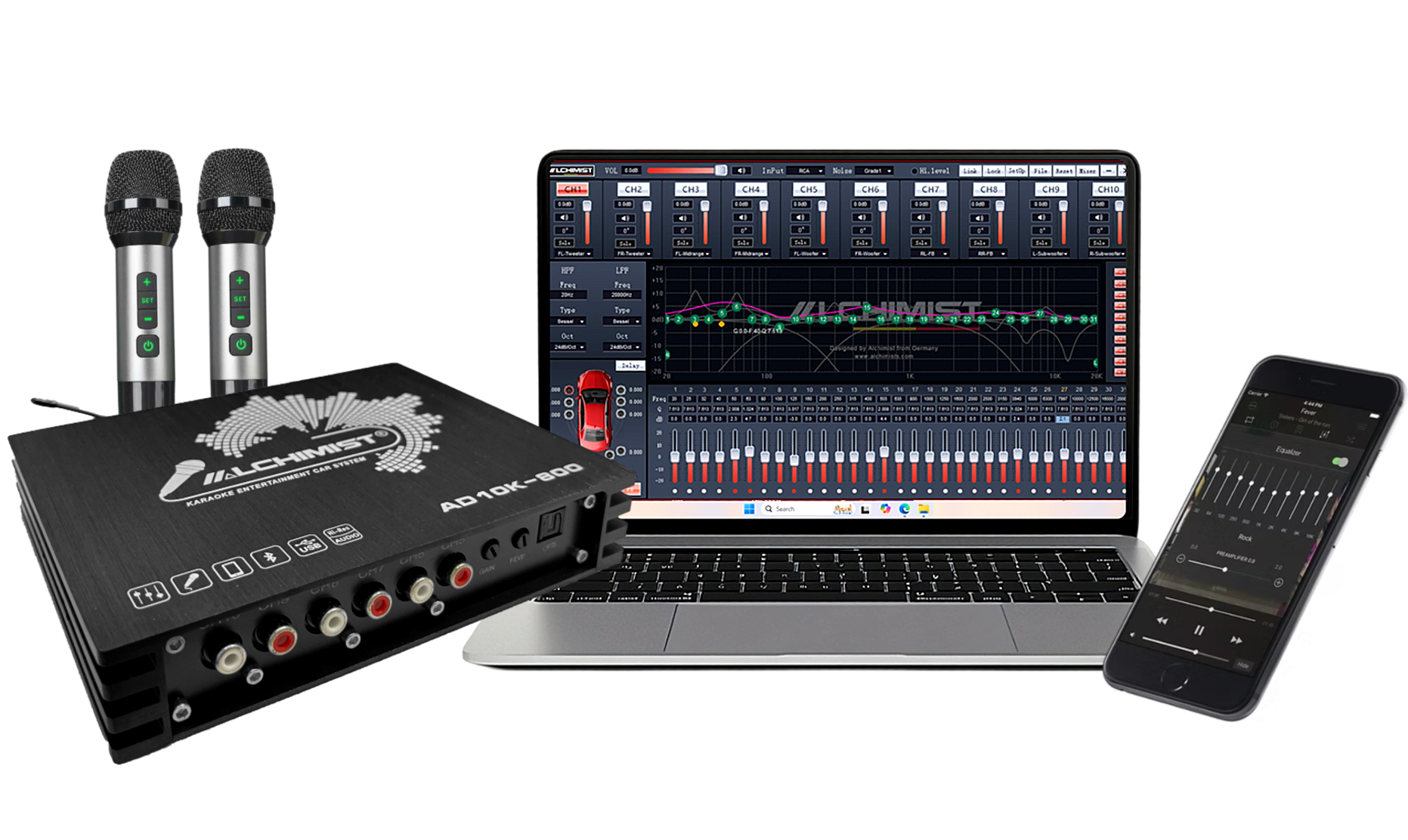

Main Functions of DSP Software

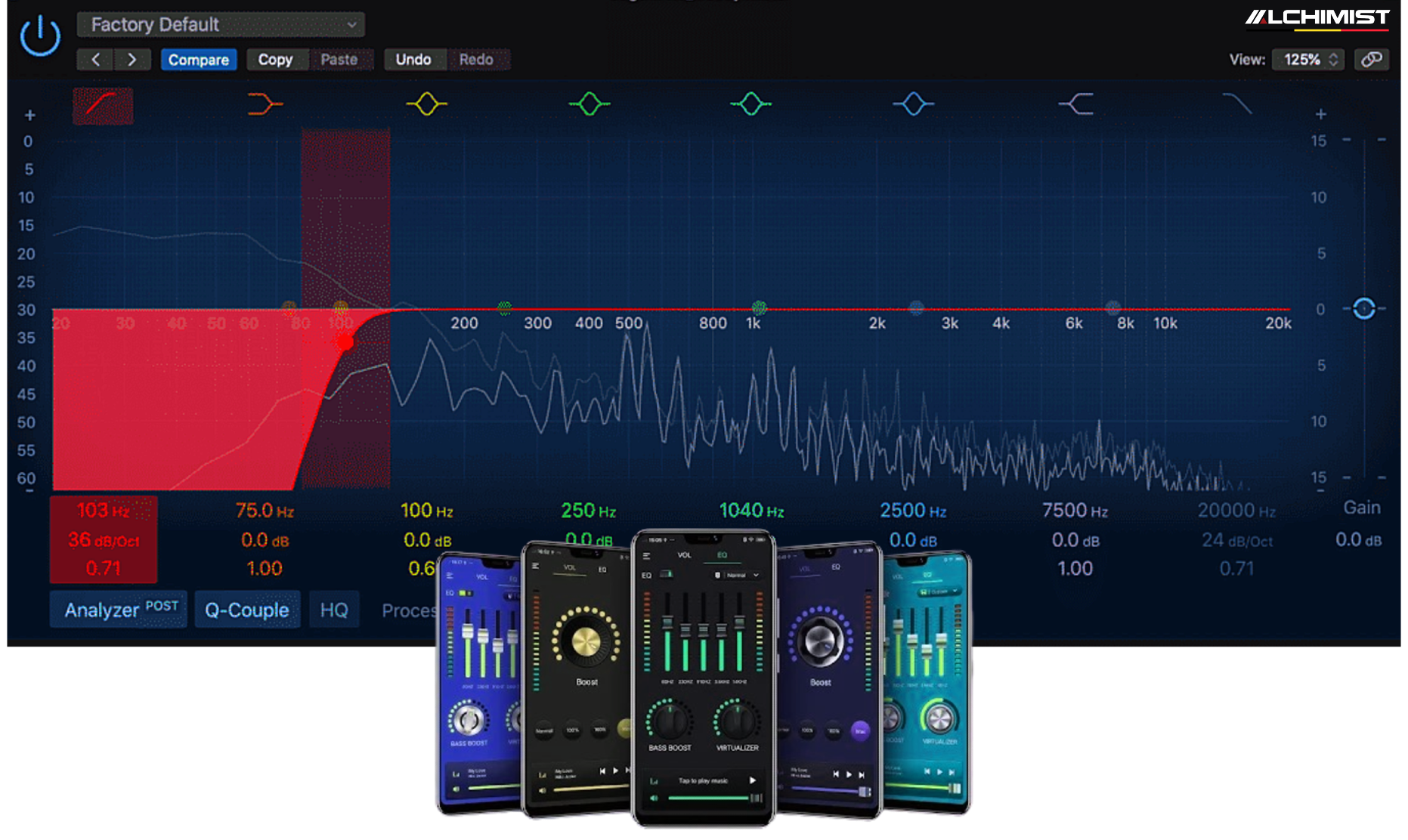

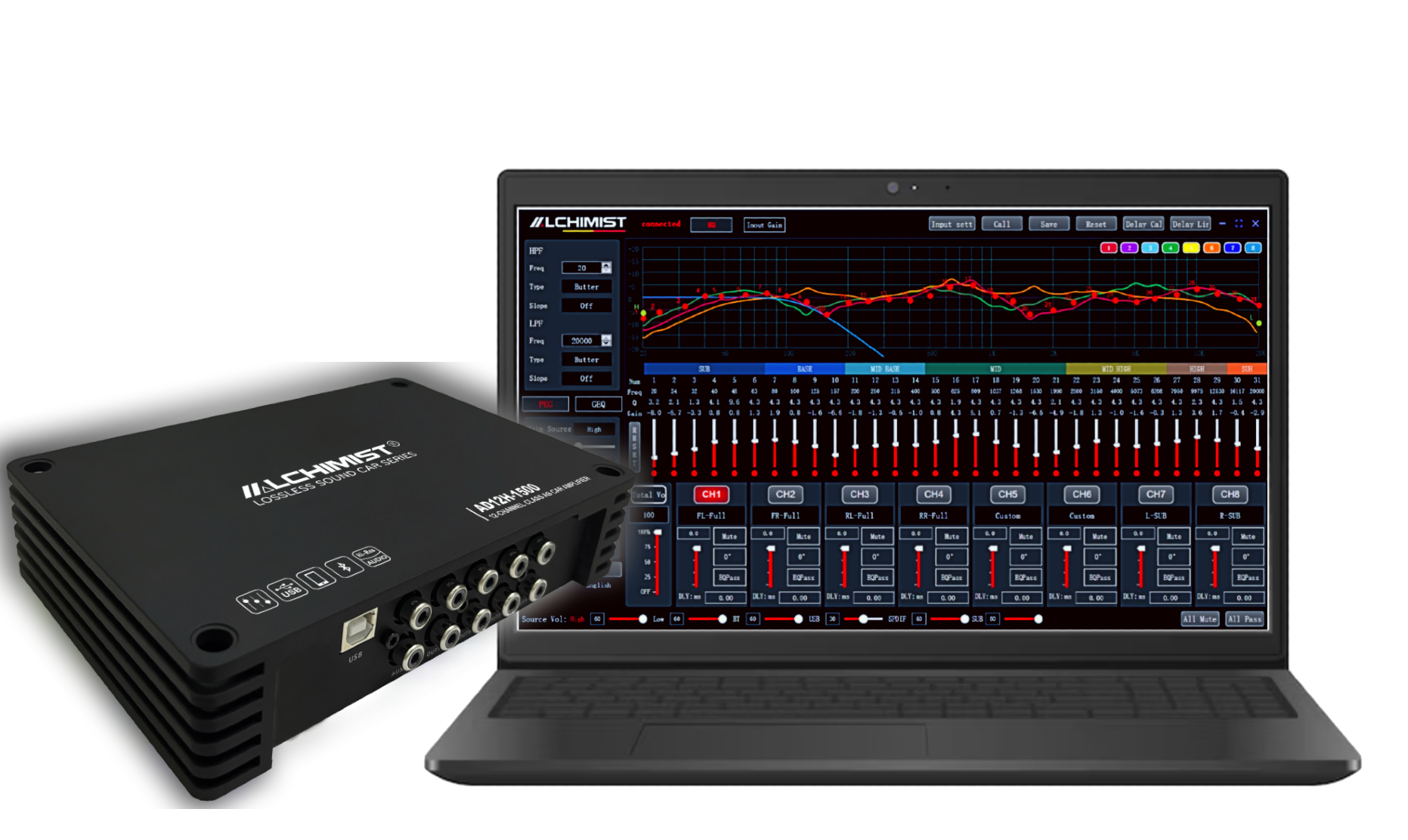

1. Equalizer (EQ)

The Equalizer is a critical tool for shaping your audio. It allows you to adjust various frequency bands to enhance or reduce specific elements of the sound.

• Frequency Bands:
  • Sub-bass (20Hz - 60Hz): Impacts the deep rumble of music, ideal for bass-heavy genres.
  • Bass (60Hz - 250Hz): Adds warmth and fullness to the overall sound.
  • Midrange (250Hz - 2000Hz): Essential for vocals and instruments; overemphasis can cause muddiness.
  • Treble (2000Hz - 20,000Hz): Introduces clarity and detail, but excessive treble can lead to harshness.

Tips for Using EQ:

• Start with a flat EQ setting.
• Make small adjustments (2-3dB) and listen to changes.
• Use reference tracks you know well to judge adjustments.

2. Crossover

Crossover settings are vital for directing specific frequencies to the appropriate speakers, ensuring each component of your audio system performs optimally.

• Types of Crossovers:
  • High-Pass Filter: Allows frequencies above a certain point to pass, useful for tweeters.
  • Low-Pass Filter: Allows frequencies below a certain point, essential for subwoofers.
  • Band-Pass Filter: Allows a specific range of frequencies, often used for midrange speakers.

Crossover Configuration:

• Identify the frequency response of each speaker.
• Set the crossover points based on the manufacturer's recommendations.
• Test with various music genres to ensure clarity and balance.

3. Delay

Delay settings help synchronize sound from multiple speakers. This is crucial in a car where distances between speakers can vary.

How to Adjust Delay:

• Measure the distance from each speaker to the listener's position.
• Convert this distance into milliseconds (1 foot = approximately 1ms).
• Input these values into the delay settings for each speaker.

Practical Application:

• Use a test mic or sound meter to evaluate the time alignment.
• Make adjustments while listening to music to find the sweet spot.

4. Level Control

Level control allows for precise adjustments of the output level for each speaker, ensuring a balanced soundstage.

Setting Levels:

• Start with all levels at a neutral position.
• Play a reference track and listen for imbalances.
• Adjust individual speaker levels until the sound feels cohesive.

Advanced Techniques:

• Use a sound level meter to measure output levels.
• Adjust levels based on listening position, especially if you frequently drive with passengers.

5. Phase Adjustment

Phase adjustment is essential for ensuring that sound waves from different speakers work together rather than canceling each other out.

Understanding Phase:

• Sound waves can be in-phase (reinforcing) or out-of-phase (canceling).
• Adjusting the phase can improve clarity and presence.

Steps for Phase Adjustment:

• Experiment with phase settings while listening to familiar tracks.
• Listen for changes in depth and clarity as you adjust.

6. Presets

Presets allow you to save your preferred settings for different listening environments or music genres.

Creating Presets:

• After making adjustments, navigate to the presets section.
• Save your current settings with a descriptive name (e.g., "Rock," "Jazz," "Podcast").

Utilizing Presets:

• Switch between presets based on your mood or the type of music.
• Share presets with friends or online communities for collaborative tuning.

Detailed Step-by-Step Instructions

Step 1: Connect the Device

• Connection Options: Use USB or Bluetooth to connect your computer or mobile device to the car audio system.
• Driver Installation: Ensure that any necessary drivers are installed for seamless communication between the software and your audio hardware.

Step 2: Open the Software

• Launch the DSP software from your device.
• Familiarize yourself with the interface, noting key features and navigation options.

Step 3: Set Up the Equalizer

• Navigate to the Equalizer section.
• Start with a flat EQ setting to establish a baseline.
• Adjust frequency bands:
  • Boost or cut frequencies based on your listening preferences.
  • Use the "A/B" comparison feature (if available) to compare adjustments.

Step 4: Configure the Crossover

• Access the Crossover settings.
• Identify your speaker types and their frequency response.
• Set cutoff frequencies:
  • For example, set the subwoofer to cut off at around 80Hz.
  • Set the tweeter to start at around 2kHz.
• Listen to various genres to ensure proper distribution of frequencies.

Step 5: Adjust Delay

• Measure the distance from each speaker to your primary listening position.
• Input these measurements into the Delay settings.
• Listen to music and fine-tune delays until the sound is synchronized.

Step 6: Level Control

• Go to the Level Control section.
• Adjust the volume for each speaker:
  • Start with all speakers at a neutral level.
  • Play a track and listen for imbalance, adjusting as needed.

Step 7: Set Phase Adjustment

• Access the Phase Adjustment section.
• Experiment with phase settings while listening to familiar tracks.
• Make adjustments based on clarity and soundstage depth.

Step 8: Save Settings

• Once you've finalized your settings, navigate to the Presets section.
• Save your current configuration with a clear name to easily identify it later.

Step 9: Test the Sound

• Play a variety of music genres to evaluate the overall sound quality.
• Make any final adjustments based on your listening experience.

Additional Tips

• Regular Maintenance: Periodically revisit your settings to accommodate changes in your audio preferences or new speakers.
• Use Quality Sources: Ensure your audio sources are high-quality files or streams to take full advantage of your DSP capabilities.
• Engage with User Communities: Join online forums or social media groups dedicated to car audio tuning for tips and shared experiences.

Conclusion

By following this comprehensive guide, you can effectively use DSP software to transform your car audio experience. Take your time experimenting with settings, as the right adjustments can lead to a significant enhancement in sound quality. Enjoy your tailored audio experience on the road!
