Description
The Alchimist AD12H - 1500 is a high-end 12-channel Class AB DSP processor engineered for audiophiles who demand precision, clarity, and customization. Powered by the new AD12PRO signal processing chip, it delivers ultra-accurate sound tuning and real-time audio adjustments through its redesigned software interface. With a rich set of input/output options including optical input, Bluetooth 5.3 with APTX Lossless, and a mix of high-level and RCA outputs, the AD12H-1500 is built to integrate seamlessly into any premium car audio setup. Combining sleek aluminum construction with powerful DSP control, this processor sets a new benchmark for performance and user experience in automotive sound systems.
Details
Product Description
Step into the future of in-car audio with the Alchimist AD12H-1500, a flagship-class DSP processor that combines cutting-edge acoustic engineering with raw power and precision. At its core lies the brand-new AD12PRO DSP chip, designed for ultra-fast signal processing and true-to-source sound reproduction.
The AD12H-1500 isn’t just an upgrade — it’s a complete redefinition of what a high-end DSP should be. With an entirely redesigned tuning software, users now enjoy real-time adjustments via a clean, split-screen UI and deeper control over every detail of their soundstage.
Key Features
Equipped with the advanced AD12PRO audio DSP chipset for pristine sound accuracy
Next-generation tuning software with smart UI and split-screen real-time adjustment
Enhanced high-sensitivity outputs, delivering clean and dynamic amplification
Bluetooth 5.3 with APTX Lossless for flawless wireless audio streaming
Built-in optical input for high-resolution digital signal input
Signature aluminum alloy chassis with bold blue LED lighting for a sleek finish

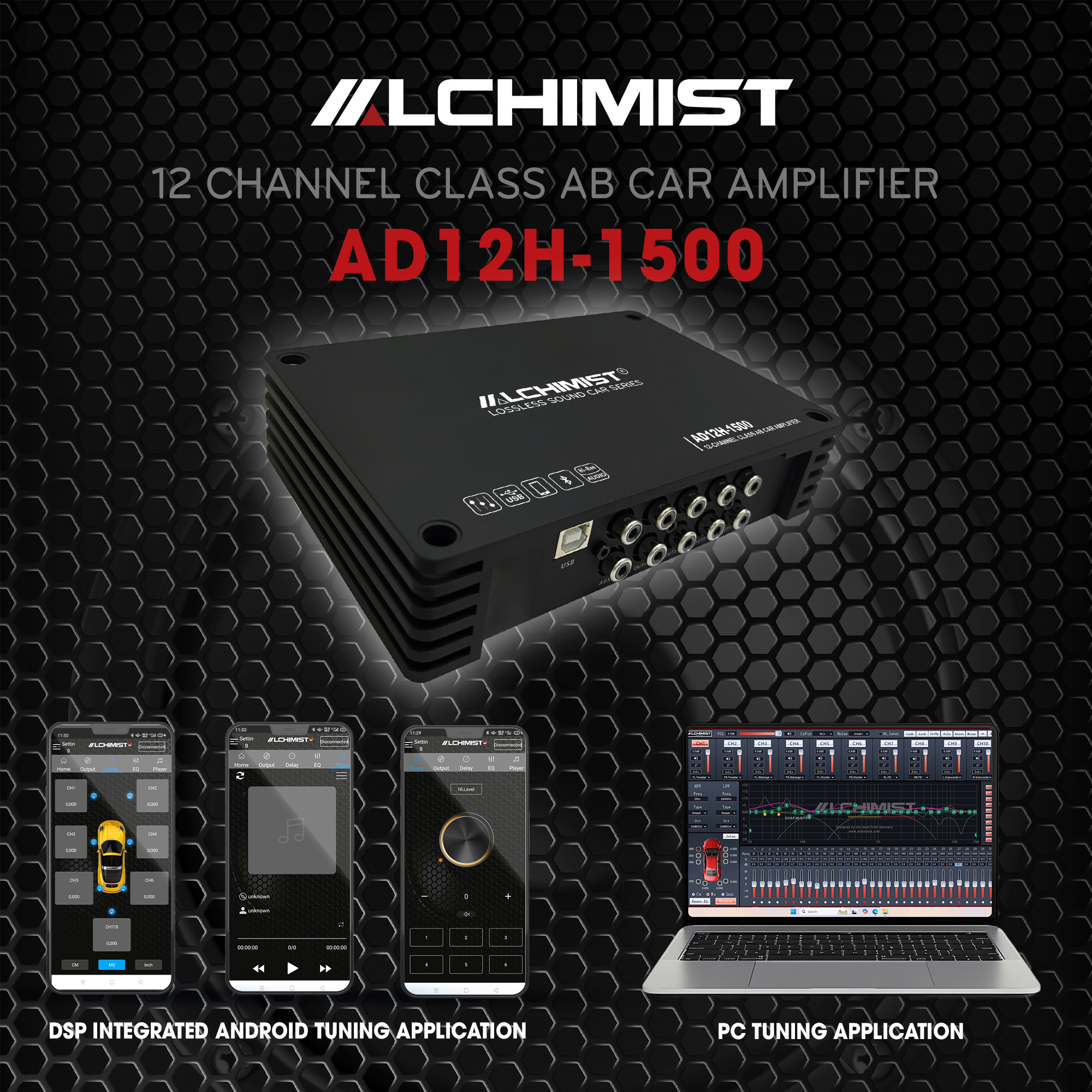

Full control via official mobile and desktop app (Android / Windows)

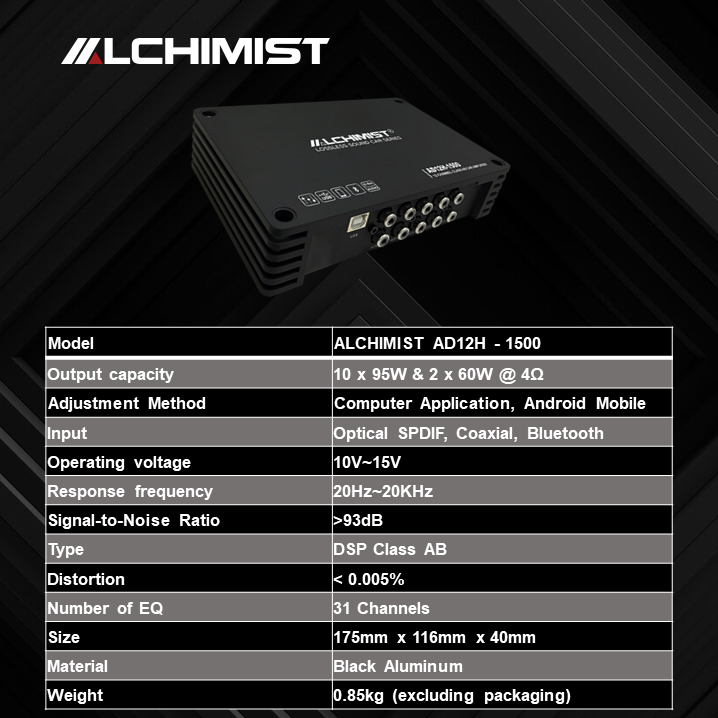

Technical Specifications
| Category | Specification |
|---|---|
| Channels | 12 total (10 output + 2 auxiliary input) |
| DSP Chip | AD12PRO – Ultra-precision audio signal processor |
| Output Power | 10 x 95W & 2 x 60W @ 4Ω (with high-sensitivity output design) |
| Operating Voltage | 10V ~ 15V DC |
| Frequency Response | 20Hz ~ 20KHz |
| Signal-to-Noise Ratio | >93dB (for cleaner, distortion-free performance) |
| Total Harmonic Distortion | < 0.005% |
| EQ Bands | 31-band fully adjustable EQ |

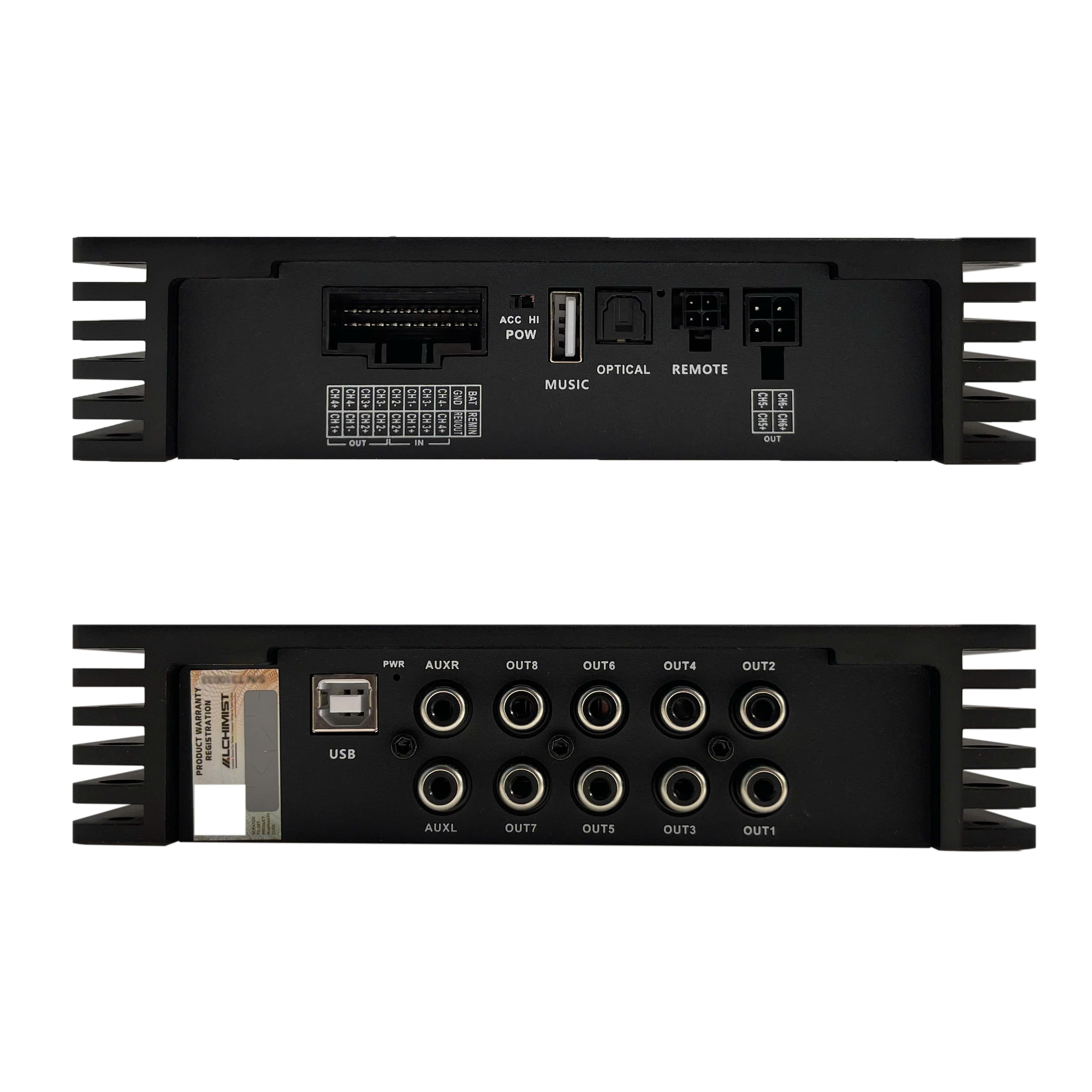

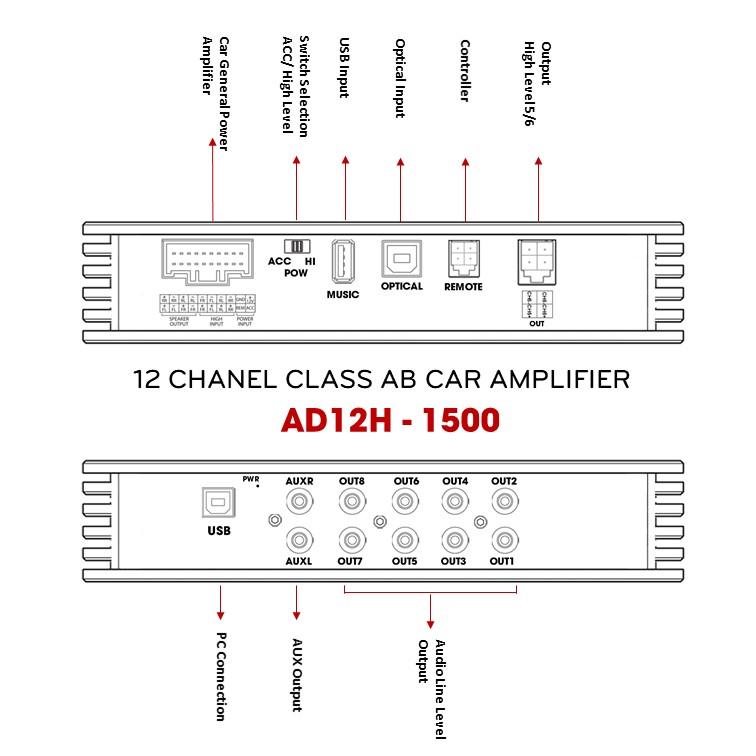

| Input/Output | 4 high-level inputs, 2 Aux inputs, 1 optical input, 10 high-level outputs, 8 RCA line-level outputs |
| Startup Modes | ACC / Professional |
| Bluetooth | Bluetooth 5.3, APTX Lossless, range up to 15 meters |
| Housing Material | Black anodized A4 aluminum with advanced heat dissipation |

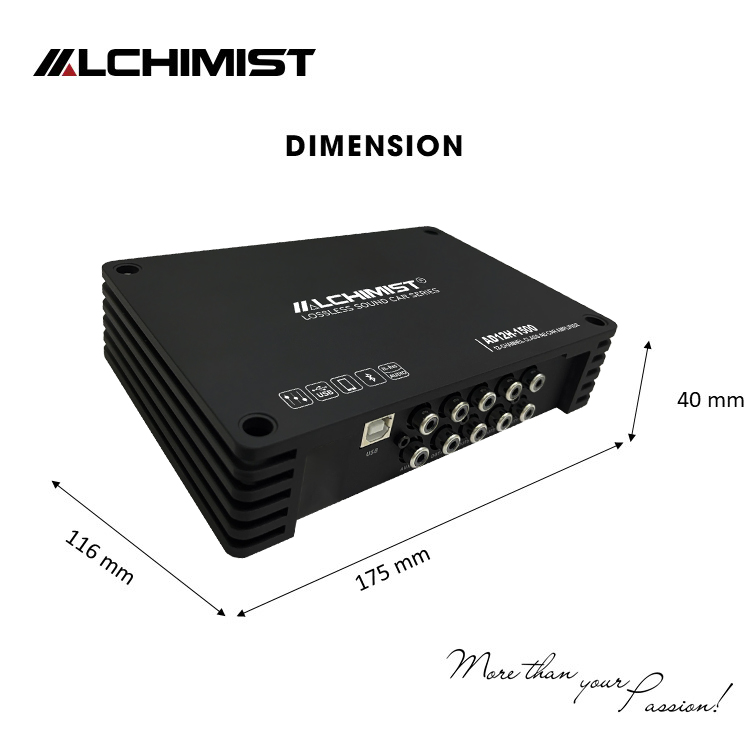

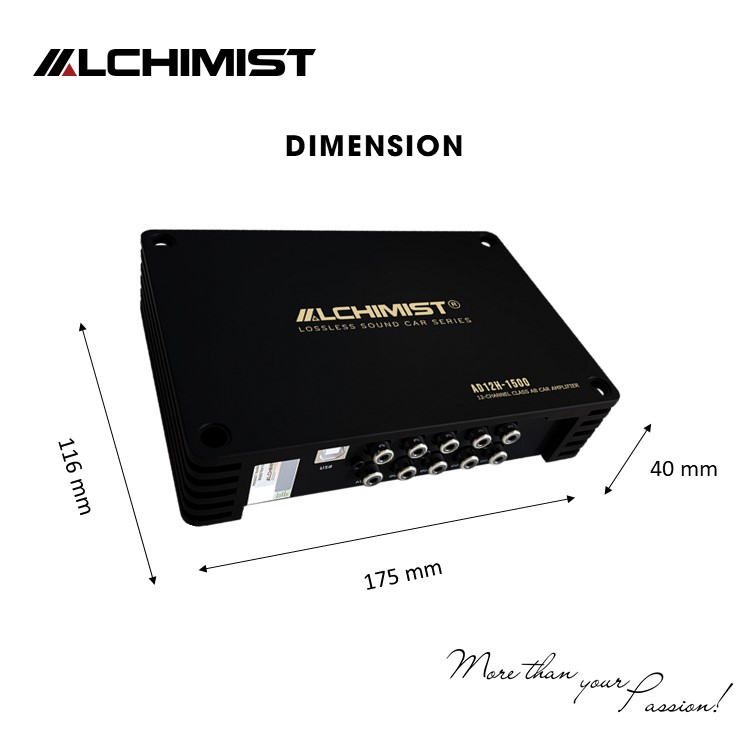

| Dimensions | 175mm x 116mm x 40mm |
| Weight | 0.85kg (excluding packaging and accessories) |
