Description
Designed for the Modern Driving Experience
The Alchimist AD10K-800 is built for drivers and audio enthusiasts who seek clean, powerful, and customizable sound on the road. Whether you're streaming high-resolution music via Bluetooth, playing your favorite tracks from a USB drive, or hosting an impromptu karaoke session with friends, this compact DSP amplifier delivers exceptional audio performance with precision and ease.
With professional-grade DSP tuning software, you can fully customize each output channel — from EQ settings to time alignment and crossover adjustments — to create a truly immersive soundstage tailored to your car and your personal taste.
Compact Power, Big Performance
Despite its small size, the AD10K-800 packs serious power: up to 4 × 100W at 4Ω, delivering clean, distortion-free audio across the full audible spectrum. The high signal-to-noise ratio (>105dB) and wide frequency response (20Hz–20kHz) ensure that every detail of your music is heard — from deep bass to crystal-clear highs.
Its 6-channel low-level outputs provide flexible routing to external amplifiers or subwoofers, giving you full control over your custom audio system.
Built for Entertainment On the Go
With Bluetooth 5.2 for seamless wireless streaming and USB support for APE, WAV, MP3, and flash storage, your music is always within reach. And thanks to built-in wireless microphone support, you can connect up to two wireless mics for karaoke, voiceovers, or live interaction — all while maintaining rich, high-fidelity output.
Durable. Efficient. Smart.
Housed in a rugged aluminum enclosure, the AD10K-800 is designed to withstand heat, vibration, and daily use while keeping a sleek, modern appearance. It’s engineered for efficiency, drawing less than 300mA at peak and 0mA in standby mode, helping preserve your battery even when installed in compact or multi-device systems.
Details
Alchimist AD10K-800 DSP Integrated Amplifier with Karaoke Feature
The Alchimist AD10K-800 is a compact yet powerful 4-channel digital signal processing (DSP) amplifier designed for audiophiles and car audio enthusiasts seeking precise sound control and superior connectivity. Crafted with a robust aluminum enclosure, this unit combines clean amplification, flexible tuning, and wireless functionality — all in one elegant device.
High-Performance Amplification
With a rated output of 4 × 45W RMS and peak power up to 4 × 100W at 4Ω, the AD10K-800 delivers loud, clean, and distortion-free audio. Its wide frequency response (20Hz–20kHz) and high signal-to-noise ratio (>105dB) ensure crystal-clear reproduction across all genres of music.
Precision DSP Control
Tune your sound to perfection with PC-based DSP software that gives you full control over equalization, crossover points, time alignment, and channel mixing. Perfect for custom in-car sound staging.
Wireless Connectivity & USB Playback
Enjoy Bluetooth 5.2 wireless streaming for a stable, low-latency connection to your mobile devices. The USB port supports playback from APE, WAV, MP3, and flash drives, offering versatility in audio sources.
Karaoke & Microphone Support
Host karaoke sessions on the go — the amplifier supports up to 2 wireless microphones, ideal for in-car entertainment, parties, or announcements.

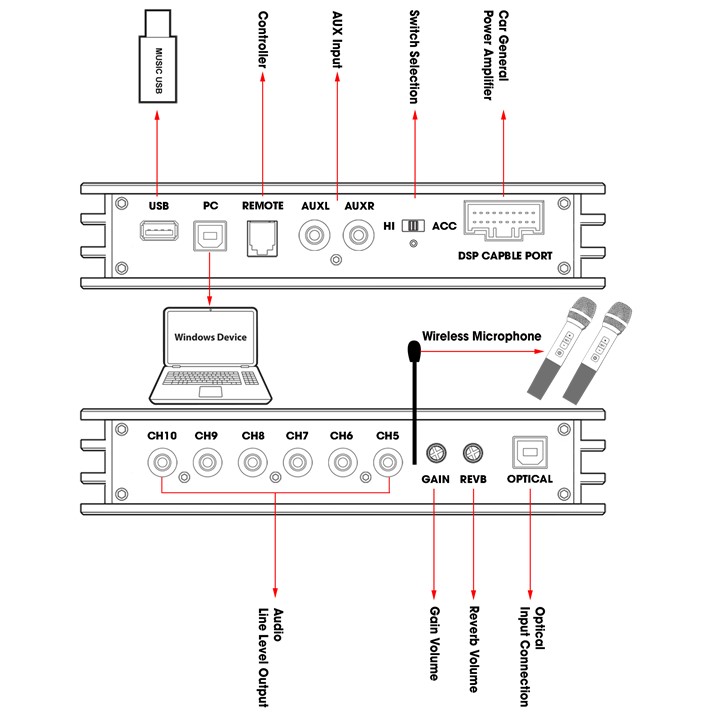

Flexible Input/Output Options
High-Level Input/Output: 4CH in / 4CH out
Low-Level Output: 6 RCA channels for external amplifiers or subwoofers
Compatible with both factory (OEM) and aftermarket audio systems.
Energy Efficient & Compact Design
Built for modern vehicles, the AD10K-800 has a low power draw (<300mA max) and 0mA standby current, reducing battery strain. The compact body (17 × 13.5 × 3.2 cm) and lightweight build (0.9 kg) make installation simple, even in tight spaces.

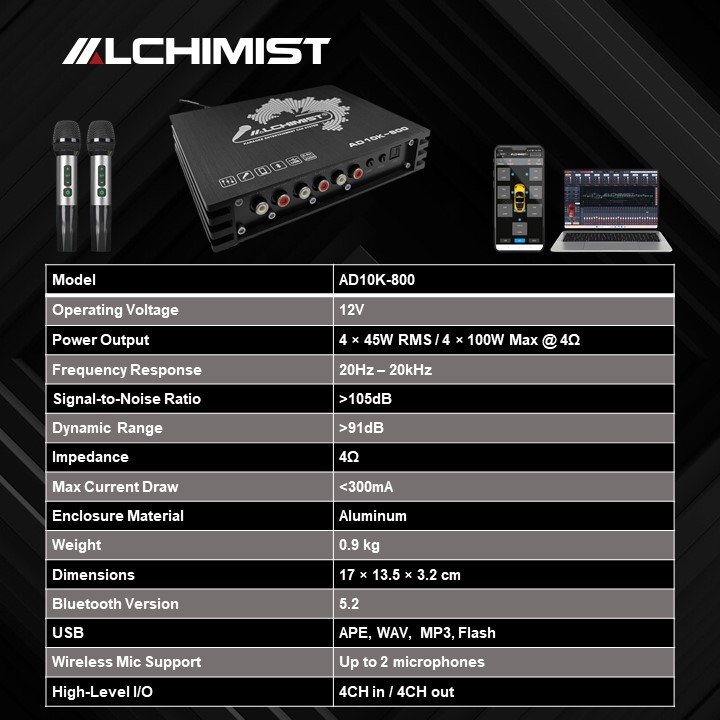

Specifications Summary:
| Attribute | Details |
|---|---|
| Model | AD10K-800 |
| Brand | Alchimist |
| Operating Voltage | 12V |
| Power Output | 4 × 45W RMS / 4 × 100W Max @ 4Ω |
| Frequency Response | 20Hz – 20kHz |
| Signal-to-Noise Ratio | >105dB |
| Dynamic Range | >91dB |
| Impedance | 4Ω |
| Max Current Draw | <300mA |
| Standby Current | 0mA |
| Enclosure Material | Aluminum |
| Weight | 0.9 kg |
| Dimensions | 17 × 13.5 × 3.2 cm |
| Bluetooth Version | 5.2 |
| USB Formats Supported | APE, WAV, MP3, Flash |
| Wireless Mic Support | Up to 2 microphones |
| Low-Level Output | 6 channels |
| High-Level I/O | 4CH in / 4CH out |
| DSP Tuning Software | PC-based |
